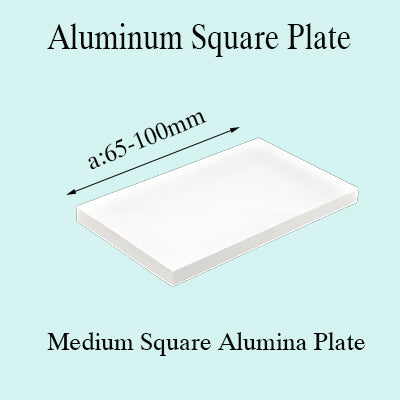

Medium Square Alumina Plate, 65mm-100mm Side Length, Industrial-Grade Wear-Resistant & High-Temperature Ceramic Tile
Medium Square Alumina Plate, 65mm-100mm Side Length, Industrial-Grade Wear-Resistant & High-Temperature Ceramic Tile
Regular price
$38.05 USD
Regular price
$0.00 USD
Sale price
$38.05 USD
Unit price
per
Shipping calculated at checkout.
Transportation time and requirements
Couldn't load pickup availability
This medium square alumina plate, with a side length range of 65mm-100mm, is made of high-density alumina ceramic. It is suitable for high-temperature environments, mechanical seals, semiconductor equipment, and more. It features excellent mechanical strength and chemical stability, meeting various industrial requirements.
For more specifications, please refer to the following series.
1.small plate; 2.medium plate; 3.Large Plate; 4.Extra-Large Plate;
| P/N | a | b | t | MOQ |
| P5-04044 | 4 | 4 | 4 | 30 |
| P5-15108 | 15 | 10 | 8 | 15 |
| P5-151010 | 15 | 10 | 10 | 10 |
| P5-201512 | 20 | 15 | 12 | 15 |
| P5-20201.5 | 20 | 20 | 1.5 | 25 |
| P5-30302 | 30 | 30 | 2 | 20 |
| P5-40303 | 40 | 30 | 3 | 20 |
| P5-40403 | 40 | 40 | 3 | 10 |
| P5-45233 | 45 | 23 | 3 | 10 |
| P5-50253 | 50 | 25 | 3 | 10 |
| P5-50303 | 50 | 30 | 3 | 10 |
| P5-50403 | 50 | 40 | 3 | 10 |
| P5-50503 | 50 | 50 | 3 | 5 |
| P5-60303 | 60 | 30 | 3 | 10 |
| P5-60403 | 60 | 40 | 3 | 5 |
| P5-60503 | 60 | 50 | 3 | 5 |
| P5-60603 | 60 | 60 | 3 | 5 |
| P5-606010 | 60 | 60 | 10 | 1 |
| P5-65653 | 65 | 65 | 3 | 5 |
| P5-70703 | 70 | 70 | 3 | 5 |
| P5-75754 | 75 | 75 | 4 | 2 |
| P5-80403 | 80 | 40 | 3 | 5 |
| P5-80404 | 80 | 40 | 4 | 5 |
| P5-80804 | 80 | 80 | 4 | 2 |
| P5-84758 | 84 | 75 | 8 | 2 |
| P5-85854 | 85 | 85 | 4 | 2 |
| P5-90603 | 90 | 60 | 3 | 5 |
| P5-90904 | 90 | 90 | 4 | 2 |
| P5-100303 | 100 | 30 | 3 | 5 |
| P5-100403 | 100 | 40 | 3 | 5 |
| P5-100406 | 100 | 40 | 6 | 5 |
| P5-100409 | 100 | 40 | 9 | 2 |
| P5-100503 | 100 | 50 | 3 | 5 |
| P5-100509 | 100 | 50 | 9 | 2 |
| P5-100603 | 100 | 60 | 3 | 5 |
| P5-100653 | 100 | 65 | 3 | 2 |
| P5-100841.5 | 100 | 84 | 1.5 | 5 |
| P5-100843 | 100 | 84 | 3 | 2 |
| P5-100844 | 100 | 84 | 4 | 2 |
| P5-100846 | 100 | 84 | 6 | 1 |
| P5-1001003.5 | 100 | 100 | 3.5 | 2 |
| P5-1001005 | 100 | 100 | 5 | 2 |
| P5-1001007 | 100 | 100 | 7 | 1 |
| P5-1001008 | 100 | 100 | 8 | 1 |
| P5-1051054 | 105 | 105 | 4 | 1 |
| P5-1101104 | 110 | 110 | 4 | 1 |
| P5-115553 | 115 | 55 | 3 | 2 |
| P5-115654 | 115 | 65 | 4 | 2 |
| P5-1151154 | 115 | 115 | 4 | 1 |
| P5-120805 | 120 | 80 | 5 | 1 |
| P5-1201206 | 120 | 120 | 6 | 1 |
| P5-1301306 | 130 | 130 | 6 | 1 |
| P5-1351207 | 135 | 120 | 7 | 1 |
| P5-1401406 | 140 | 140 | 6 | 1 |
| P5-1501307 | 150 | 130 | 7 | 1 |
| P5-1501506 | 150 | 150 | 6 | 1 |
| P5-1501507 | 150 | 150 | 7 | 1 |
| P5-155404 | 155 | 40 | 4 | 2 |
| P5-1601205 | 160 | 120 | 5 | 1 |
| P5-1601405 | 160 | 140 | 5 | 1 |
| P5-1601606 | 160 | 160 | 6 | 1 |
| P5-1801806 | 180 | 180 | 6 | 1 |
| P5-1901904 | 190 | 190 | 4 | 1 |
| P5-2001006 | 200 | 100 | 6 | 1 |
| P5-2001505 | 200 | 150 | 5 | 1 |
| P5-2002008 | 200 | 200 | 8 | 1 |
| P5-20020010 | 200 | 200 | 10 | 1 |
| P5-2202208 | 220 | 220 | 8 | 1 |
| P5-2501559 | 250 | 155 | 9 | 1 |
| P5-2502508 | 250 | 250 | 8 | 1 |
| P5-3001508 | 300 | 150 | 8 | 1 |
| P5-3002008 | 300 | 200 | 8 | 1 |
| P5-3003006 | 300 | 300 | 6 | 1 |
| P5-3101858 | 310 | 185 | 8 | 1 |
| P5-1601409 | 160 | 140 | 9 | 1 |
| P5-3203206 | 320 | 320 | 6 | 1 |
| P5-33033015 | 330 | 330 | 15 | 1 |
| P5-1001003.5 | 100 | 100 | 3.5 | 1 |
