Quartz Tube OD 6–9mm | Small Bore Precision Fused Silica Tubing ±0.05mm Tolerance for Thermocouple UV Fiber Optic

Quartz Tube OD 6–9mm | Small Bore Precision Fused Silica Tubing ±0.05mm Tolerance for Thermocouple UV Fiber Optic

$15.40 USD
$19.25 USD $15.40 USD
特價 售罄
結帳時計算運費。

Transportation time and requirements

SIZE
QTY

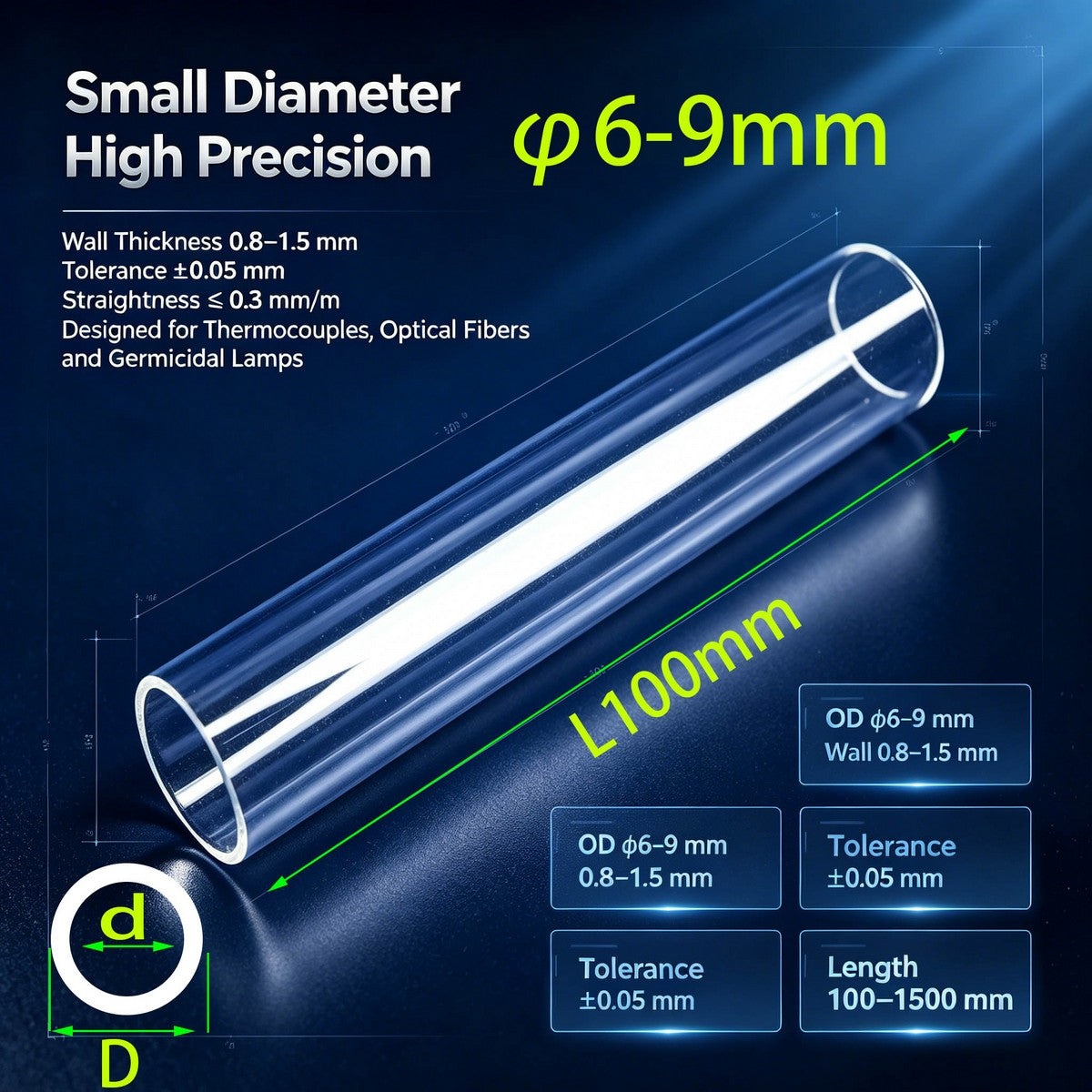

Quartz Tube OD6–9mm | High-Purity Fused Silica Precision Tubing
Parameter
Specification
Outer Diameter
6mm - 9mm
Wall Thickness
0.8mm - 1.5mm
Dimensional Tolerance
±0.05mm Ultra Precision
Straightness
≤0.3mm/m
Custom Length
100mm - 1500mm OEM Cut
SiO₂ Purity
≥99.95% / Optional 99.999%
Temperature Resistance
1100℃ Long-term / 1450℃ Short-term
UV Transmittance
≥80% (185-4000nm Full Spectrum)
Core Performance: Hydrofluoric acid exclusive corrosion resistance, ultra-high electrical insulation, thermal shock crack-proof
Application: Thermocouple protection sleeve, UV germicidal lamp, fiber optic protection tube, laboratory precision instrument
